Inicio > LENOVO ThinkStation P520

PRODUCTO

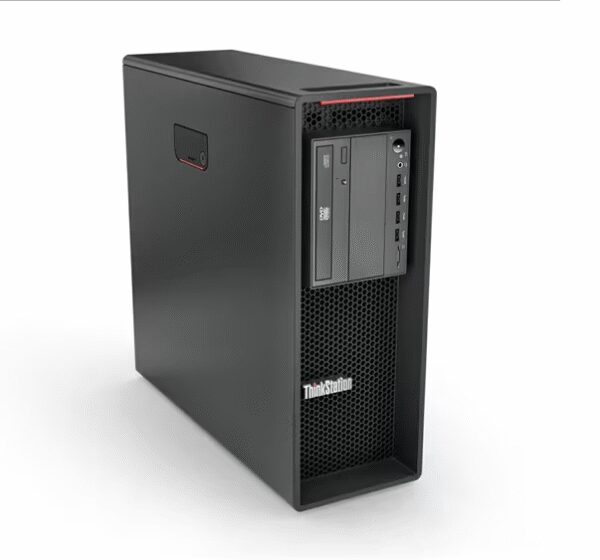

LENOVO ThinkStation P520

30BF

Importe con IVA incluido

DESCRIPCIÓN
ThinkStation P520



Processor



Intel® Xeon® W-2123 (4C / 8T, 3.6 / 3.9GHz, 8.25MB)



Processor Sockets



1x FCLGA2066



Discrete Graphics



1x NVIDIA® Quadro® P2000 5GB



Chipset



Intel® C422 Chipset



Memory



1x 16GB RDIMM DDR4-2666 ECC



Memory Slots



8 DDR4 DIMM slots, 4 channels capable



Max Memory



Up to 512GB (8x 64GB RDIMM)



M.2 SSD RAID Controller



Integrated NVMe® Controller, non-RAID



M.2 SSD Drive



None



HDD Controller



Onboard Intel® RSTe SATA



SATA/SAS Drive



1x 256GB SSD 2.5″ SATA6Gb/s Opal + 1x 1TB HDD 7200rpm
3.5″ SATA6Gb/s



PCIe SSD Adapter



None



Storage Support



Up to 6x 3.5″ SATA HDD / 2.5″ SATA HDD / 2.5″
SATA SSD + 9x M.2 PCIe® SSD + 1x PCIe AIC SSD
  • 3.5″ HDD up to 6TB each
  • 2.5″ SATA HDD up to 500GB each
  • 2.5″ SATA SSD up to 2TB each
  • 2.5″ SAS HDD up to 600GB each
  • M.2 PCIe SSD up to 2TB each
  • PCIe AIC SSD up to 480GB each



Optical



HH DVD±RW



Audio Chip



High Definition (HD) Audio, Realtek® ALC662 codec



Power Supply



690W Platinum Fixed



DESIGN



Keyboard



USB Calliope Keyboard, Black, Spanish (LA)



Mouse



USB Calliope Mouse



Expansion Slots



One PCIe® 3.0 x8



Two PCIe® 3.0 x4



Two PCIe® 3.0 x16



One PCI



M.2 Slots



Up to 9x M.2 SSD:



  • 2 via onboard slots
  • 4 via Quad M.2 to PCIe® adapter
  • 3 via Single M.2 to PCIe adapter
Bays



2x 3.5″ disk bay (standard)



4x 3.5″ disk bay (optional):



2 bays come with 3rd disk or Storage Bay Upgrade Kit



2 bays via flex bay



Flex Bays



2x flex bays, supports the following:



  • 2x half-height optical drives
  • 2x 5.25″ 9.0mm optical drives
  • 1x 5.25″ 9.0mm optical drive + 2x 3.5″/2.5″
    SATA SSD/HDD
  • 1x 3.5″/2.5″ SATA SSD/HDD with Front Access
    Storage Enclosure
  • 1x flex module for the following options:



Tray 1: 9.0mm optical



Tray 2: 15-in-1 USB 3.1 Gen 1 reader, 2x Thunderboltâ„¢, or
4-digit diagnostic display



Port 1 and 2: Front USB 3.1 Gen 1 Type-C or eSATA



Dimensions (WxDxH)



165 x 455x 446 mm (6.5 x 17.9 x 17.6 inches)



Weight



24 kg (52.91 lbs, maximum configuration)



CONNECTIVITY



Onboard Ethernet



Intel® I219-LM, 1x GbE RJ-45



Optional Ethernet



None



WLAN + Bluetooth



Intel® 8265, 11ac 2×2 + BT4.2, vPro®



Card Reader



SD Card Reader



Front Ports



3x USB 3.2 Gen 1



1x USB 3.2 Gen 1 (Always On and fast charge)



1x headphone / microphone combo jack (3.5mm)



Optional Front Ports (configured)



None



Rear Ports



2x USB 2.0



4x USB 3.2 Gen 1



2x PS/2 ports (keyboard / mouse)



1x Ethernet (RJ-45)



1x line-in (3.5mm)



1x line-out (3.5mm)

1x microphone (3.5mm
